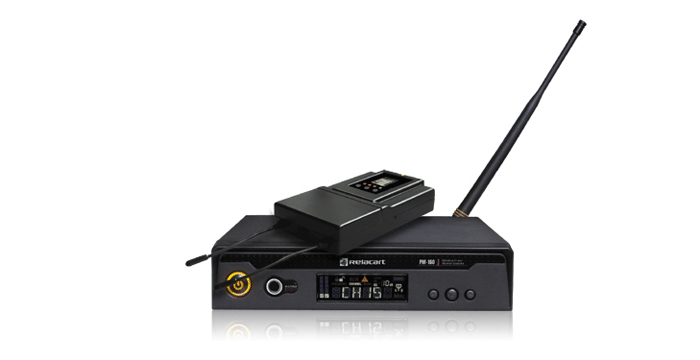

              PM-160 UHF Diversity Wireless In-ear Monitor Systems

  Key Features:

  • ¡ñ EIA-standard metal materials half - rack transmitter chassis.
  • ¡ñ All the receivers offer durable, ergonomic metal bodies, soft-touch controls.
  • ¡ñ UHF frequencies and Antenna Diversity reception for interference-resistant operation.
  • ¡ñ Bandwidth 16MHz, 32 pre-programmed frequencies available.
  • ¡ñ Selectable stereo or mono audio output.
  • ¡ñ High-visibility white LCD information display
  • ¡ñ PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
  • ¡ñ Designed for use on performance, broadcast, big meeting as side-ear systems for synchronous translation.



Specifications:

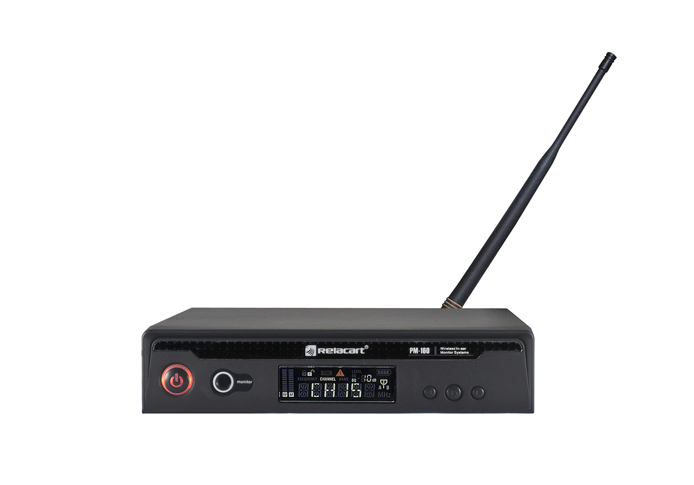

  PM-160 Stereo Transmitter

Main Frame Size
EIA STANDARD 1/2 U
Channels
Single Channel
Frequency Stability
¡À0.0005%, Phase Lock Loop frequency control
Carrier Frequency Range
UHF 618-936 MHz
Modulation Mode
FM stereo modulation
Output Power
30mW ¨C 100mW
Operating Range
100M typical ( in open space)
Oscillation
PLL synthesized
Spurious Rejection
£¼-60dBm
Maximum Deviation Range
¡À68KHz
Band Width
16MHz
S/N
£¾105dB
T.H.D.
£¼0.7% @ 1KHz
Frequency response
45Hz¡«18KHz¡À1dB
Audio Input
Line level X 2,XLR and 6.3mm¦Õ compound jack
Audio Output
6.3mm¦Õ unbalanced jack X 2
Dimension (mm)
210(W) X 43(H) X 206(D)
Weight
1.2kg

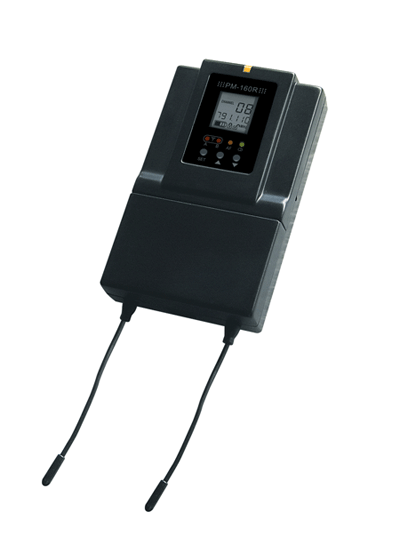

PM-160R Stereo Mini Receiver


Channels
Single Channel
Frequency Stability
¡À0.0005%, Phase Lock Loop frequency control
Carrier Frequency Range
UHF 618-936 MHz
Modulation Mode
FM stereo modulation
Operating Range
80M typical ( in open space)
Oscillation
PLL synthesized
Sensitivity
6dB¦ÌV, S/N>60dB at 25 deviation (mono)
Band Width
16MHz
Max. Deviation Range
¡À68KHz
S/N
£¾105dB
T.H.D.
£¼0.7% @ 1KHz
Frequency response
45Hz¡«18KHz¡À1dB
Stereo Separation
¡Ý45dB (at 1KHz)
Output Connector
3.5mm (¦Õ) stereo earphone connector
Output Power
2 X 150mW at 1KHz (THD3%)
Battery
AA X 2
Current Consumption
185mA typical
Battery Current / Life
Approximately 7 hours
Dimension (mm)
108(H) X 66(W) X 22(D)
Weight
190g
