VTS-1000 Automatic Video Tracking System
Video tracking system VTS-1000 cooperates with RELACART conference system: immediate display of speaker’s image, appropriate for video recording. Unique frozen image and OSD functions ensure perfect automatic video tracking.
Features
- ● Rapid switch between several cameras and video signals.
- ● Control for up to 3 cameras.
- ● Unique frozen image function: any useless pictures will not be displayed (e.g. pictures caught by the camera’s quick movement).
- ● OSD functions: display the information at the prearranged place.
- ● Compatible with cameras from different brands.

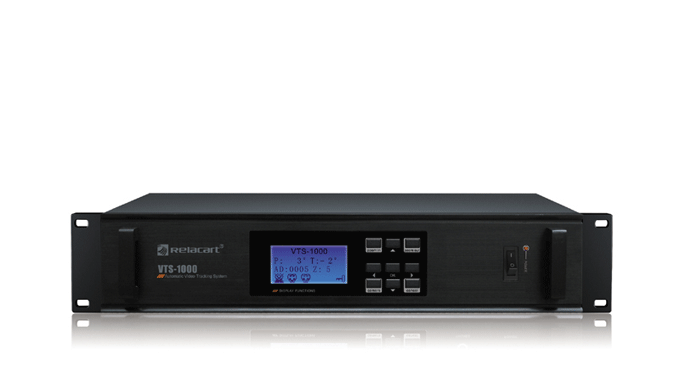

Front Panel
① Power Switch, setting this switch to the ON position cause the Power indicator to light.
② LCD displays operating status.
③ Operation keys.
Rear Panel
① Power Input: IEC type connector for 90V/240V 50/60Hz 20W without user adjustment.
② RS-232 Jack: Can be connected with RELACART conference system.
③ RS-485 Jack: Can be connected with camera.
④ S-VIDEO IN Input Jack: Can be connected with camera, and control for up to 3 cameras (Or optional for CVBS IN Input Jack).
⑤ CVBS IN Input Jack: Can be connected with camera, and control for up to 3 cameras.
⑥ CVBS OUT Output Jack: Can be connected with projector.
⑦ S-VIDEO OUT Output Jack: Can be connected with projector.
Technical Specifications:
|
Model |
VTS-1000 |
|
Working power |
AC 100~240V, 0.5A; 50/60Hz |
|
Voltage Consumption |
25W |
|
Cameras Available |
3 |
|
Video Output Electric Level |
BNC 1.08V P-P |
|
Video Output Impedance |
75Ω |
|
Video Bandwidth(-3dB) |
30MHz |
|
Direct Current output |
0 V |
|
Color |
black |
|
Install |
Mounted in a 19” rack |
|
