AR series wireless photography system


Key Features:
● The AR5  receivers offer durable, ergonomic metal bodies, soft-touch controls

● AR2  body-pack transmitter is with UHF frequencies and Antenna Diversity reception for interference-resistant operation

● AR1  handheld transmitter is with UHF PLL selectable channels which

● can be used with multi system simultaneously

● The battery life is 12 hours

● Can choose handheld or body-pack transmitter in different environment

● Applications: apply to professional and consumer camera



AR portable handheld wireless systems:

AR1 is a superior performance cardioid microphone ,with natural and true sound, designed for long distance transmission .It can meet all kinds of pick up and recording needs, can capture all the clear voice in details, let DV fans make more professional and wonderful DV works.




Carrier Frequency Range
UHF 618-936 MHz
Oscillation
PLL synthesized
Harmonic radiation
<-63dBm
Bandwidth
32MHz
Max.Deviation Range
±45KHz
Capsule
Cardioid Dynamic
RF Power Output
8 mW
Battery
AA X 2
Current Consumption
85mA, typical
Battery Current / Life
Approximately 16 hours
Dimension
45(Φ) X 233 (L)
Weight
232g ( w/o battery)

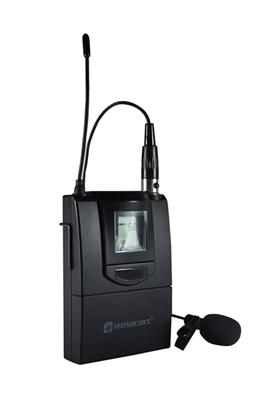

AR  body-pack transmitter

AR2  is the cardioid high sensitivity microphone designed for camera, the sound is clear, the unit directional cartridge can reduce the noise and improve the recording quality, linear switch for the musical instrument, little size is easy for concealment.





AR2  Body-pack Transmitter

Carrier Frequency Range

UHF 618-936 MHz

Oscillation

PLL synthesized

Harmonic radiation

-63dBm

Bandwidth

32MHz

Max.Deviation Range

±45KHz

Input Connector

4-pin mini-XLR connector

RF Power Output

8mW

Battery

AA X 2

Current Consumption

85mA, typical

Battery Current / Life

Approximately 16 hours

Dimension

95(H) X 65(W) X 25(D)

Weight

70g ( w/o battery)

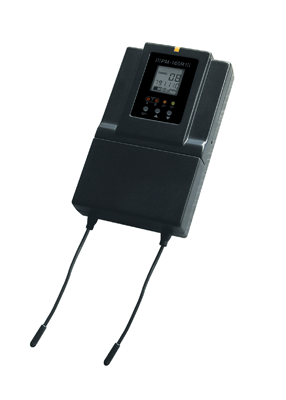

AR5  receiver:


Channels
Single Channel
Frequency Stability
±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range
UHF 618-936 MHz
Modulation Mode
FM
Operating Range
80M typical ( in open space)
Oscillation
PLL synthesized
Sensitivity
6dBμV, S/N>60dB at 25 deviation (mono)
Band Width
16MHz
Max. Deviation Range
±68KHz
S/N
>105dB
T.H.D.
<0.7% @ 1KHz
Frequency response
80Hz~16KHz ± 3dB
Stereo Separation
≥45dB (at 1KHz)
Output Connector
3.5mm (φ) stereo earphone connector
Output Power
2 X 150mW at 1KHz (THD3%)
Battery
AA X 2
Current Consumption
185mA typical
Battery Current / Life
Approximately 12 hours
Dimension (mm)
108(H) X 66(W) X 22(D)
Weight
190g
