CS-101 Conferencing Discussion System with automatic video tracking

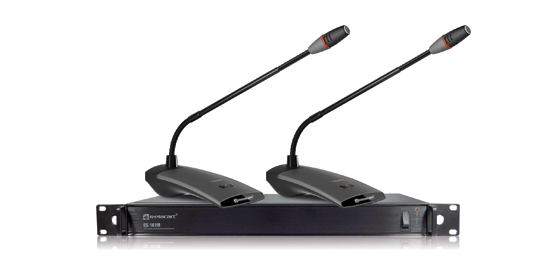

CS-101 system overview
The CS-101 is a compact and affordable audio conference system with automatic video tracking, yet meets all essential requirements for audio discussion applications. Easy installation and simple operation for variety of mini/medium type conferencing rooms.


System Features

¡ñAdvanced conferencing technology, compliant with ICE60914.
¡ñBright LCD display operation screen, with Chinese and English Language menu for choose, perfect function and easy operation.
¡ñActive 1--4 microphones in a time, chairman unit has the priority to override all delegate units.
¡ñ Auto microphone-off if no input sound in 1--60S.
¡ñ Control for up to 60 speaking units.
¡ñControl for up to 3 camera in series.
¡ñDifferent Camera licence compliant, or specific licence requirement.
¡ñEasy installation, simple operation.
¡ñHigh quality voice resolutions, especially designed for mini/medium type conferencing rooms.
¡ñStable and reliable connecting cable.
¡ñAudio insertion facility to connect external audio processing devices or telephone couplers.
¡ñPretty and fashion design.
¡ñTabletop or mounted in a 19¡¯¡¯ rack.
¡ñFour operational microphone modes:
---- Approval£ºThe operation of delegate unit should be approved by chairman unit.
---- First-in / First-out priority: When the maximum number of speakers is reach, subsequent Talk key units with override of activated microphones.
---- Open ( with limited time ): Allow maximum 4 speaking units, and can set the microphone to open 1min to 60min, when the limited time is reach, subsequent microphone speaks.
---- Sound control: Sound to open the microphone, when the maximum number of speakers is reach, subsequent microphone speaks.


Technical Specifications

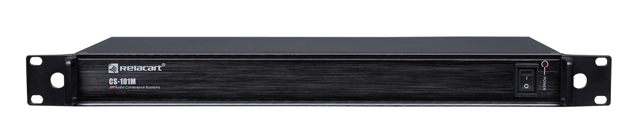

CS-101M Central Controller
Electricity
Electric Voltage for Power
AC 110-240V 50/60 Hz
Current consumption
45W
Audio Input
RCA X 1
Audio Output
RCA X 1
Frequency Response
85Hz ¨C 15KHz
S/N.:
80dB
Installation
Tabletop or mounted in a 19¡¯¡¯ rack
Color
Black
Dimension£¨W X H X D£©
405(W)x43.5(H)x215(D)
Weight (KG)
2.5KG

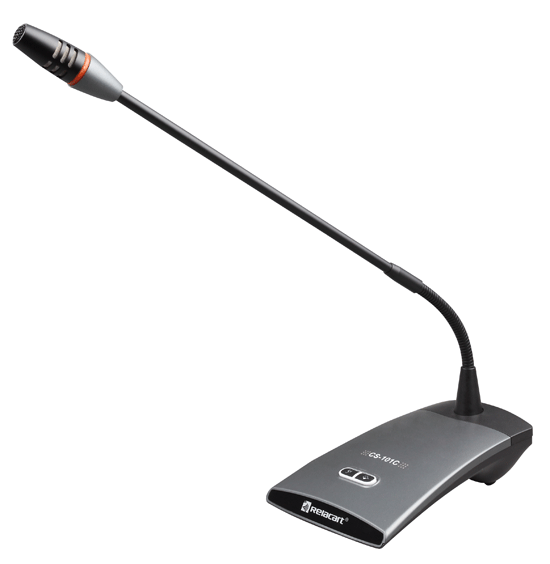

CS-101C/D Chairman Unit

•Delicate and fashion design, easy to use.
•Advanced conferencing technology, compliant with ICE60914.
•Priority bottom to switch off the speaking unit.
•With illuminated ring.
•Unidirectional condenser microphone for high quality sound pickup.
• Black or white for selection.



Frequency response
85Hz-15KHz
Current Consumption
Max£º85mA
Output Power
2 X 300mW
Element
Fixed-charge plate, permanently polarized condensers
Machine
Installation
Tabletop
Dimension for base     (WxHxD)
Without soft tube microphone 115(W)x53(H)x139.5(D)
Color
Black/silver(consented)
Microphone Length(selectable)
340mm/420mm(consented)x480mm
Weight(KG)
0.86
